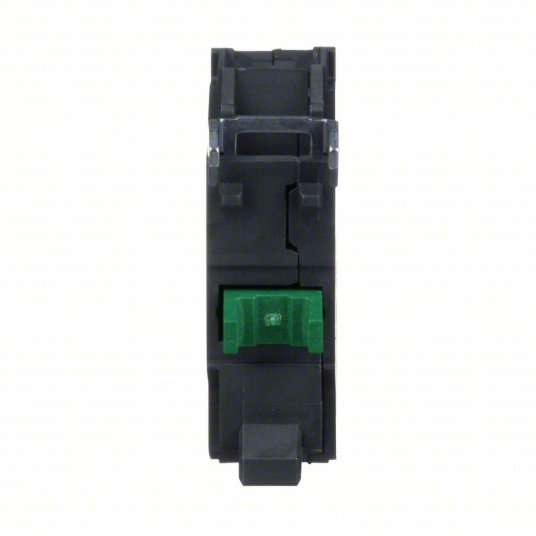

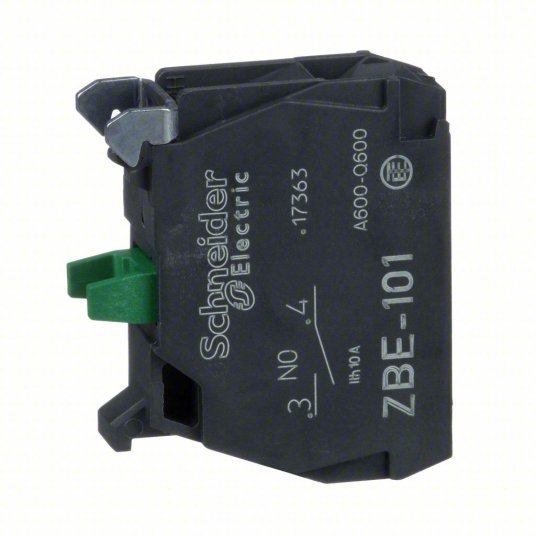

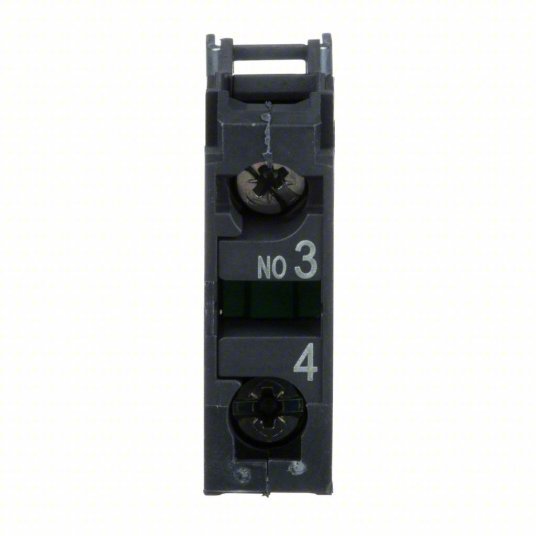

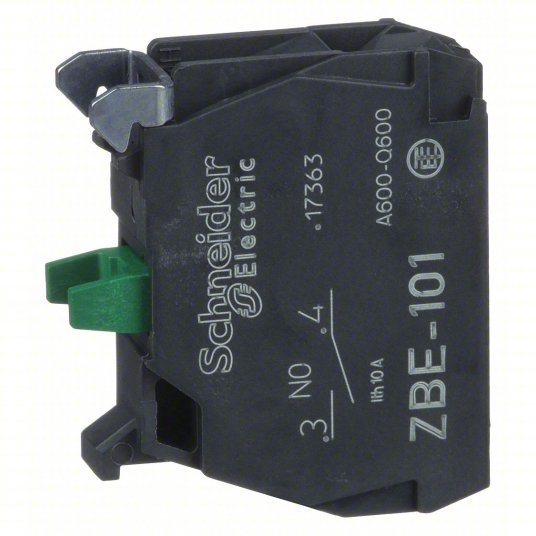

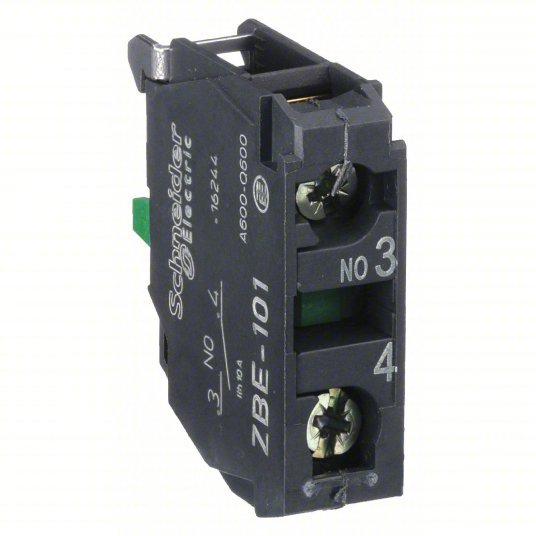

Schneider ZBE101 Contact Block 22 mm Size, Operator, 1NO, 10A @ 600V AC, Momentary, Black/Green

UPC: 785901355632 | Harmonization (Schedule B): 4202.92.0807

SKU KV6HZ06
$22.50 - $22.50
$22.50
$22.50 - $22.50
$22.50
Contact Block, Contact Form 1NO, Contact Rating 10A @ 600V AC, For Use With Chrome, Plastic Operators (ZB4 or ZB5 Operators), Action Momentary, 22 mm, Application Operator, NEMA Contact Rating Designation A600/Q600, Color Black/Green, Terminal Connection Screw/Clamp, Standards CSA, UL
Contact Rating 10A @ 600V AC
For Use With Chrome, Plastic Operators (ZB4 or ZB5 Operators)
Action Momentary
Color Black/Green
Application Operator
Contact Form 1NO
Terminal Connection Screw/Clamp
Standards CSA, UL
NEMA Contact Rating Designation A600/Q600
Device Short Name ZBE
Shape Of Screw Head cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Ambient Air Temperature For Operation -40-70°C
Protective Treatment TH
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force 2.3 N NO changing electrical state
Mounting Of Block front mounting
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
Contact Operation slow-break
Ambient Air Temperature For Storage -40-70°C
Tightening Torque 0.8-1.2 N.m EN 60947-1
Contacts Material silver alloy (Ag/Ni)
Electrical Composition Code C1 9 ) || C2 7 ) || C3 6 ) || C4 4 ) || C5 5 ) || C6 3 ) || C7 4 ) || C8 2 ) || C9 3 ) || C12 6 ) || M1 6 ) || M2 4 ) || M3 4 ) || M5 2 ) || M6 2 ) || M7 6 ) || M8 4 ) || M9 2 ) || SF1 3 ) || SF2 2 ) || MF1 2 ) || MF2 2 ) || C10 2 ) || M4 2 ) || C13 1 )
Product Or Component Type contact block
Operating Travel 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Contact Block Type single
Contacts Usage standard contacts
Contacts Type And Composition 1 NO
Ip Degree Of Protection IP20 IEC 60529
Positive Opening without
Device Presentation basic element
Product Certifications CCC || UL || DNV || GL || GOST || LROS (Lloyds register of shipping) || BV || CSA
Mechanical Durability 10000000 cycles
Connections - Terminals screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
